Optical Technology: Features Triple-Layer Beam Overlap Technology with a high beam below / low beam above configuration, dual-layer blue coating, and a sharp cut-off line design. This ensures an 800% brightness increase while preventing lens overheating and glare for enhanced safety. A single pair of projectors achieves the output of 4 low beams and 10 high beams.

High Beam System: Comprises 3 high beam units utilizing a 6000K direct-projection design, delivering a 600-meter range with strong penetration in rain and fog. The beam pattern is precisely controlled to eliminate ground scatter and prevent excessive sign glare.

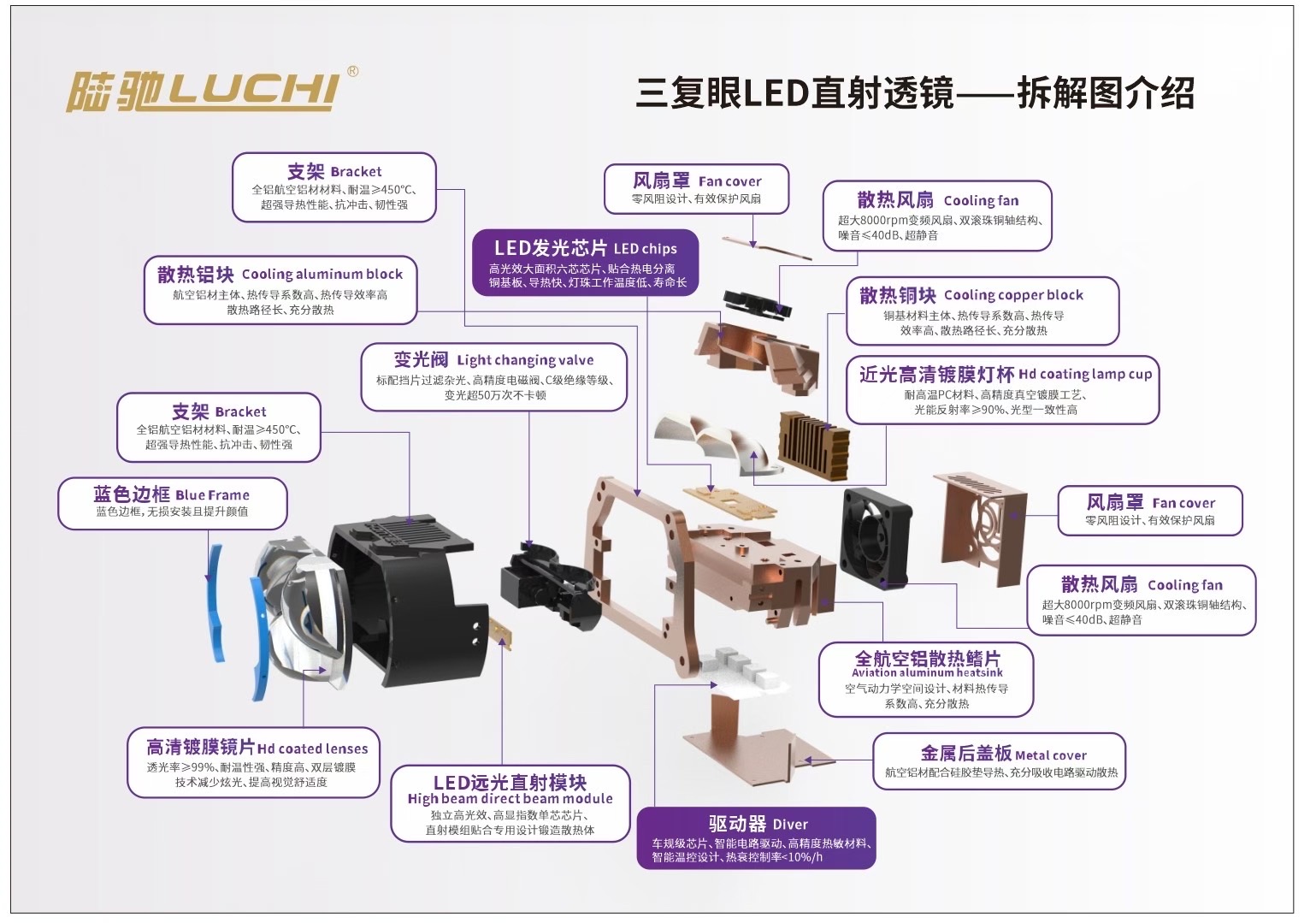

Construction & Cooling: Full aerospace-grade aluminum heatsink body with extended copper heat pipes and fins, paired with an oversized 8000 RPM dual-ball bearing copper shaft fan. The push-pull aerodynamic design maximizes airflow and cooling efficiency.

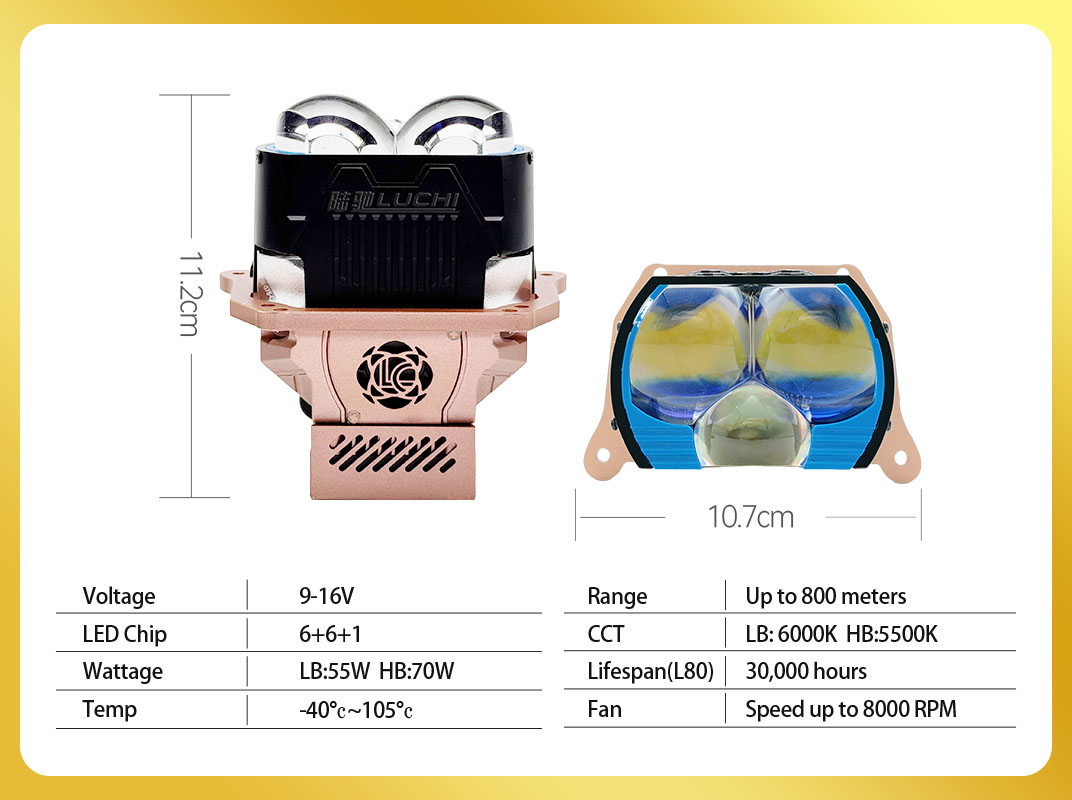

Power Consumption: Low Beam: 55W; High Beam: 70W.

Quality & Warranty: Engineered for a 10-year lifespan and 30,000 hours of trouble-free operation, backed by a 2-year warranty.

Performance: Low beam covers 6-8 lanes; high beam reaches up to 1000 meters. Universally compatible with city streets, highways, and rural roads.

Compact Design: The square-profile housing prevents light leak and is engineered for narrow OEM housing fitment. Its dimensions are more compact than traditional square or multi-facet (fly-eye) projectors.

Chips:6+6+1

3.0 inch

Support universal spiral brackets
