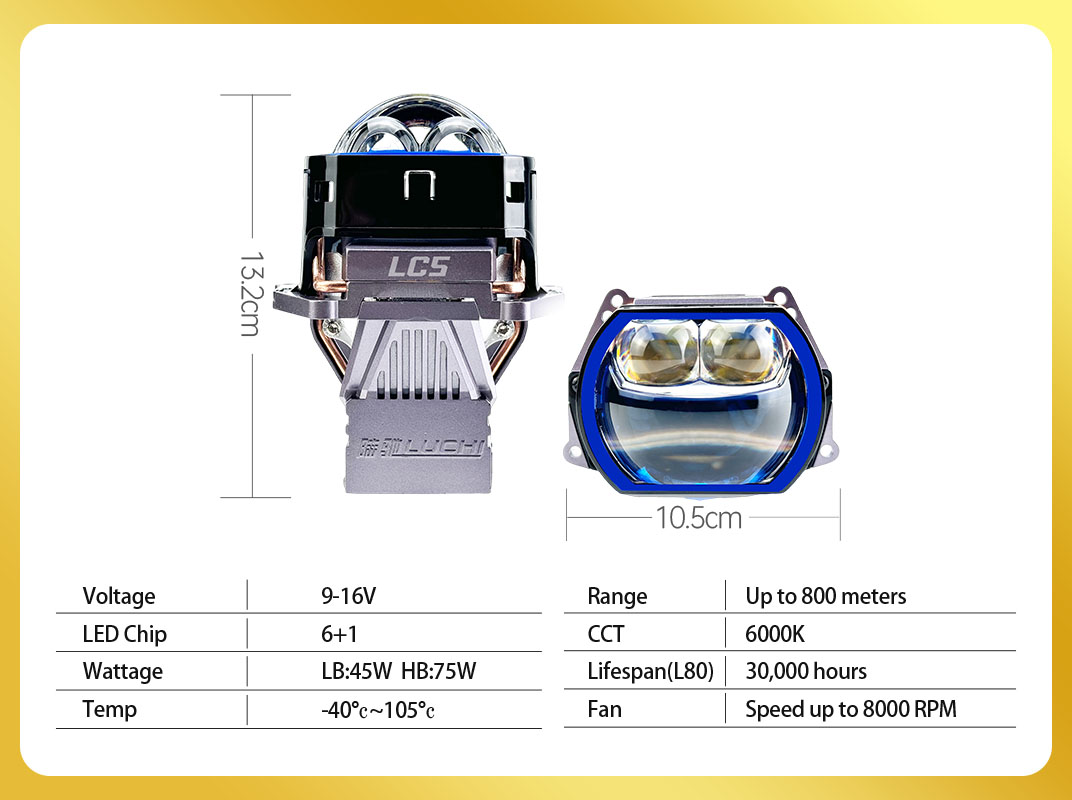

LC5 Square Dual Projector

Optical Technology: Imported 6-core LED chips + 2 independent high-efficiency, high CRI (Color Rendering Index) single-core chips + Dual-layer blue coating technology + Integrated die-cast borosilicate optical lens with 99% light transmittance. Ensures 500% brightness enhancement while preventing glare for increased safety.

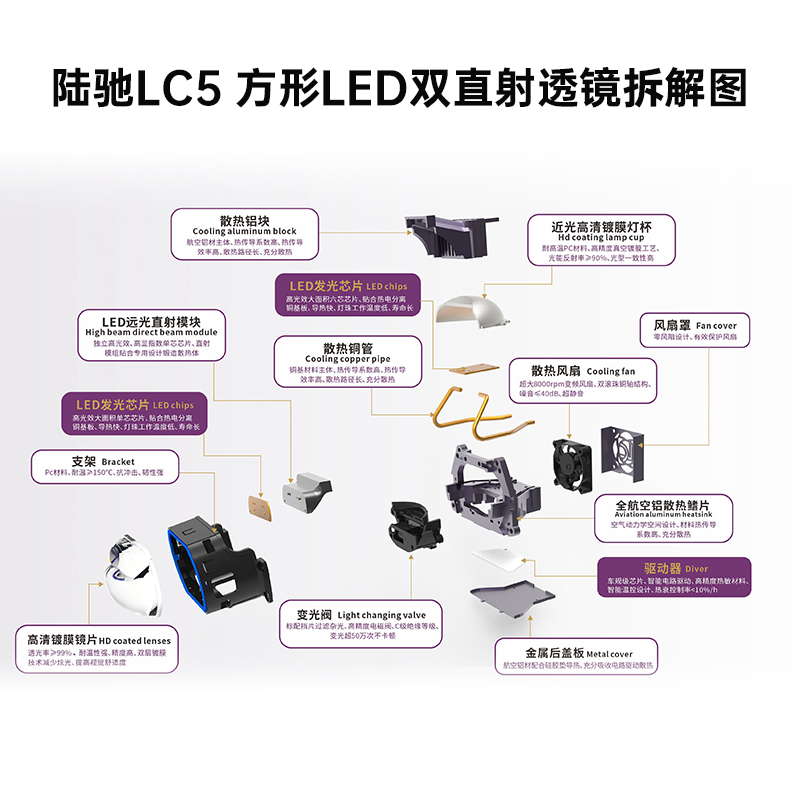

Construction & Cooling: Compact Square-Shape Design,Full aerospace-grade aluminum alloy heat sink body + Extended heat pipes with cooling fins + Oversized 6000 RPM dual-ball bearing copper shaft fan. Heat dissipation efficiency improved by 60%.

Power Consumption: Low Beam: 45W; High Beam: 75W.

Quality & Warranty: Rated for 30,000 hours of trouble-free operation. Backed by a 2-year warranty for assured quality.

Performance: Low beam illumination covers 6-8 lanes; High beam throw distance reaches up to 800 meters. Universally suitable for city roads, national highways, expressways, and rural paths.

Compatible with 90% of the models on the market

3.0 inch

Support universal spiral bracket
